Testing

Toxicity Tester 
(NCD 1409)

Types of Sample:

Cables, cable containment, relay, mcb, contractors, switch, PCB, Composite panel, Polymetric hose, Adhesive (solid sheets), Polymeric Window seal, cable sheath, Fiber reinforced plastic, Thermosetting Laminate, DGFRP, LP sheet, Wood-Polymer Composite material, Polymeric coated fabric (Upholstery), coated fabric, PVC flooring, Acrylic sheet, GFRE, NAFTC sheet, Compressed Laminate, phenolic resin sheet, Phenolic GRP, PU foam, Leather, silicon foam

Sample Conditioning Time

Sample Size

Sample Qty

Test Parameter

: Smoke Production

Test standard

: NES 713; NCD 1409.

Test Duration

: Minimum 4 hours

Sample report

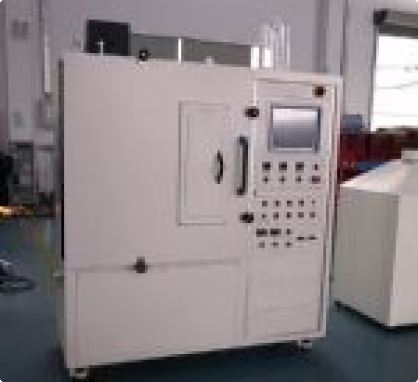

Smoke Density & Toxicity
(ISO 5659-2)

Types of Sample:

Cables, cable containment, Relay, MCB, contractors, switch, PCB, Flexible metal, Rubber, Hose, Fibre reinforced plastic, Laminate, DGFRP, LP sheet, Compreg, Plywood, Upholstery, PU foam, Leather, Silicon foam, Coated fabric, PVC flooring, Honeycomb sheet, Painted sheet, Acrylic sheet, GFRE, NAFTC sheet, Compressed Laminate phenolic resin sheet, Phenolic GRP

Sample Conditioning Time

: 24 hrs or more & 168 hrs

Sample Size

: 75 X 75 mm

Sample Qty

: 12

Test Parameter

: Ds Max, CITg, Ds4,VOF4

Test standard

: NES 713; NCD 1409.

Test Duration

: Approx 30 mins

Sample report

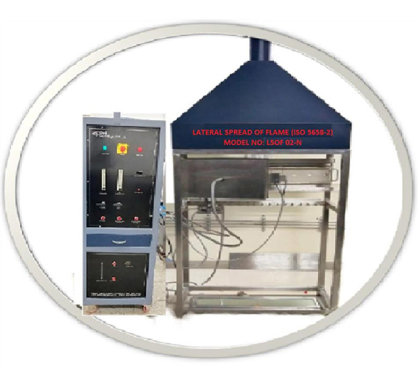

Lateral Spread of Flame
(ISO 5658-2)

Types of Sample:

DGFRP, GFRE, LP, NAFTC, Compressed Laminate, Compreg, Phenolic resin sheet, Painted sheet, Fibre reinforced plastic, Phenolic GRP, Fire retardant Plywood

Sample Conditioning Time

: 24 hrs or more

Sample Size

: 800 X 155 mm

Sample Qty

: 12

Test Parameter

: Critical flux at extinguishment, CFE

Test Duration

: Approx 30 Min

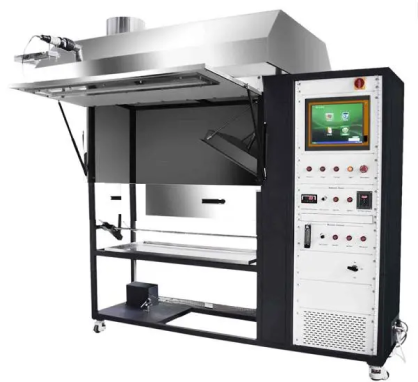

Flooring Radiant Panel(ISO 9239-1)

Types of Sample:

Floor carpet, PVC flooring, Vinyl flooring, Pvc free flooring, Compreg

Sample Conditioning Time

: At least 72 hrs

Sample Size

: 1050 X 230 mm

Sample Qty

: 6

Test Parameter

: Wind opposed burning behaviour, CFE

Test Duration

: Approx 30 Min

Toxicity Tester
(NCD 1409)

Types of Sample:

Cables, Cable containment, Relay, MCB, Contractors, switch, PCB, Composite panel, Polymetric hose, Adhesive(solid sheets), Polymeric Window seal, Cable sheath, Fiber reinforced plastic, Thermosetting Laminate, DGFRP,LP sheet, Wood-Polymer Composite material, Polymeric coated fabric (Upholstery), Coated fabric, PVC flooring, Acrylic sheet, GFRE, NAFTC sheet, Compressed Laminate, phenolic resin sheet, Phenolic GRP, PU foam, Leather, silicon foam

Test Duration

: Minimum 4 hrs

Smoke Visibility
(UIC 564-2 Appendix 15)

Types of Sample:

Rubber, Fibre reinforced plastic, Laminate, DGFRP,LP sheet, Compreg, Plywood, Upholstery, PU foam, Leather, Silicon foam, Coated fabric, PVC flooring, Honeycomb sheet, Painted sheet, GFRE, NAFTC sheet, Compressed Laminate, phenolic resin sheet

Sample Conditioning Time

: ?

Sample Size

: 120 X 100 mm

Sample Qty

: 3

Test Parameter

: Class A.B.C, Deterioration of visibility due to smoke

Test Duration

: Minimum 2 hrs

Ignitablity Chamber
(EN,ISO 11925-2)

Types of Sample:

Laminate, Upholstery, PU foam, Leather, Silicon foam, Acrylic, Water proofing membrane, ACP pane, Cladding

Sample Conditioning Time

: 24 hrs or more

Sample Size

: 250 X 90 & 250 X 180 mm

Sample Qty

: 1 & 1

Test Parameter

: Ignitability

Test Duration

: Approx 30 Min

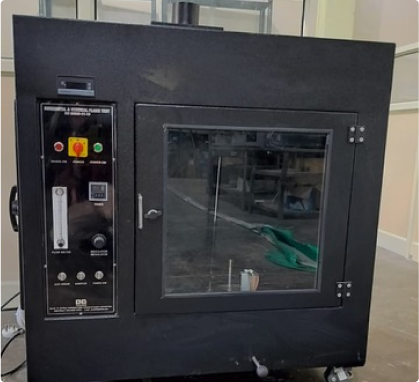

Flammabilty Chamber
(UL-94)

Types of Sample:

Plastic sheet, Polymer sheet, Fibre reinforced plastic,Laminate

Sample Conditioning Time

: 23±2 °C & 50±5% RH, 48 hrs for 5 samples and Other 5 samples 70±1 °C, 168 hrs then 4 hrs in decicator

Sample Size

: 150 X 50 X 13 mm

Sample Qty

: 1 0

Test Parameter

: V0 and HB class

Test Duration

: 120 Sec

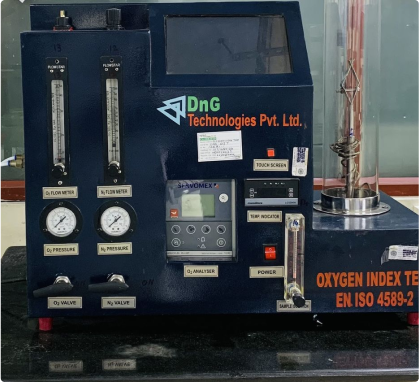

Limmiting Oxygen Index
(EN,ISO 4589-2, IS 13501)

Types of Sample:

Cables, Cable containment, Flexible metal, Rubber, Fibre reinforced plastic, Laminate, DGFRP, LP sheet, Compreg, Plywood, Upholstery, PU foam, Leather, Silicon foam, Coated fabric, PVC flooring, Honeycomb sheet, Painted sheet, Acrylic sheet, Hose pipe, GFRE,NAFTC sheet, Compressed Laminate, Phenolic resin sheet Upholstery, Coated fabric

Sample Conditioning Time

: 23±2 °C & 50±5 %RH for 88 hrs

Sample Size

: Different types

Sample Qty

: 15

Test Parameter

: Oxygen Index(%)

Test Duration

: 180 Sec
